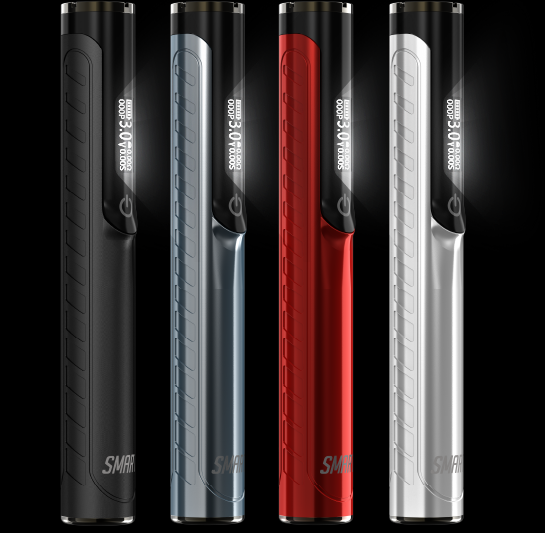

Finish

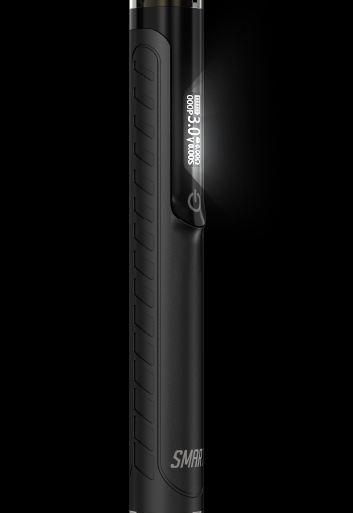

Jet Black

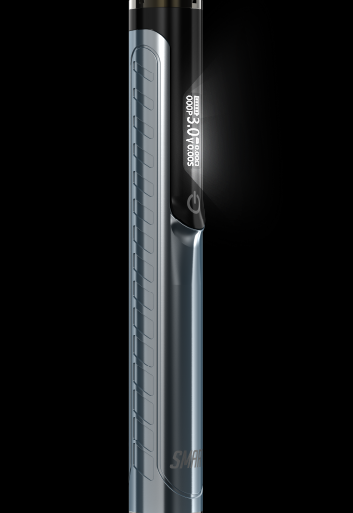

Sky Blue

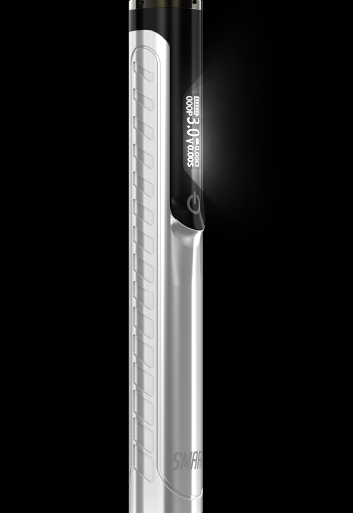

Silver

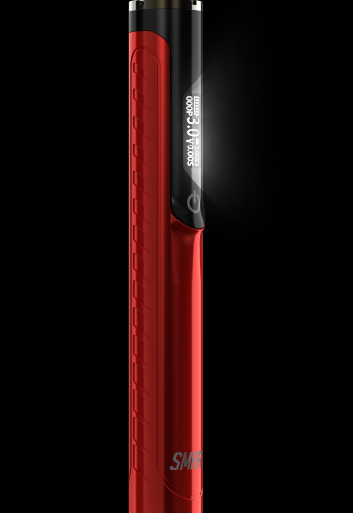

Red Hot

Price
$30
Settings
  • High resolution:

    1-degree increments

    1.8V-2.5V

    Optimal flavor, minimal vapor output.

    2.5V-3.1V

    Equilibrium of taste and vapor.

    3.1V-3.6V

    Intense vapor coupled with rich flavor.

    3.6V-4.2V

    Maximum vapor, ideal for larger dabs.

Size and Weight

Height 3.97 inches (101 mm)

Width: .57 inches (14.50 mm)

Depth: .55 inches (14 mm)

Weight: .11 pounds (50g)

Cartridge Connection

Connection: Universal 510 thread

Depth: Open

Diameter: Open

Voltages: 1.8V‑to‑4.2V

Resistance Range: >0.30 Ω

Controls
Auto mode:

Quickly double-press button and inhale.

On-demand mode:

Hold button and inhale.

Voltage:

Quickly triple press the button then, press or hold plus or minus.
Display
In Sight
All‑screen OLED display
64‑by‑32-dots resolution at 146 ppi

The Smart display has rounded corners that follow a beautiful curved design,
and these corners are within a rectangle. When measured as a rectangular shape,
the screen is .54 inches diagonally (actual viewable area is less).

External Buttons and Connectors

Main button: Tactile

Secondary buttons: Capacitive touch

Charging port: USB-C

Coil connection: 510 universal thread

Materials

Body: One piece alloy

Button and display cover: Polymer composite

510 thread: Stainless steel

Power and Battery

1.8V-2.5V:
Up to 100 hits

2.5V-3.1V:
Up to 70 hits

3.1V-3.6V:
Up to 45 hits

3.6V-4.2V:
Up to 35 hits

Model:
  • Built‑in rechargeable lithium‑ion battery 350mAh
  • Charging via USB to computer system or power adapter

    (available-separately)

1 Hour charge time.
Operating System

Version: OS Smart Cartridge1

Built-in Features
In the Box
  • Smart
  • 4 Feet Type-C USB Cable
  • Instructions Manual
Instructions
Attach Cartridge

   Screw into 510 thread.
   opening up to the marked line and reattach.

Power On

   Quickly press the button five times.

Choose Setting
   Quickly triple press the button then, press or hold plus or minus.
Choose Mode
   Auto-mode

   Quickly double-press button and inhale.
   On-demand mode
   Hold button and inhale.

Power Off

   Quickly press the button five times.

Pro Tips

Unlock Back Buttons
Quickly triple press power button.

Flip Display
Simultaneously press the up and down buttons.

Reset Puff Counter
Simultaneously press the down and power buttons.

Cartridge Connection

Depth: Open

Diameter: Open

Resistance Range: >0.30 Ω

Type: Universal 510 thread

Maintenance
  • Clean underneath the cartridge and the airway often of unwanted residue with Q-tip and isopropyl alcohol or preferred solvent.
  • To stay already, and have the best experience charge regularly via USB-C.
System Requirements
    • Compatible coil (Two coils are included)
    • Water for percolator
    • Regular water renewal
    • Regular charging
    • Regular cleaning
Environmental Requirements
Operating ambient temperature:

32° to 95° F (0° to 35° C)

Nonoperating temperature:

−4° to 113° F (−20° to 45° C)

Relative humidity:

5% to 95% noncondensing

Operating altitude:

tested up to 10,000 feet (3000 m)

Safety Warning & Instructions

Please read information carefully before using the product and keep it in a safe place

Safety Warning


  • Do not expose the device to extreme     temperatures.
  • Do not charge your battery through a car.
  • Do nots over charge or charge unattended.
  • Do nots use the device while charging.
  • Do nots disassemble the device or change the battery.
    • Contact your direct seller or Yocan manufacturer for after-sale support:
    • www.yocanblack.com
    • service@yocantech.com
    Protection
    • Safety Cut off: The white light will flash 10 times and stop working when the device heating continuously for more than 30 seconds. No coil: White light flashes 3 times. Short-circuit: Red light flashes 5 times. Low battery: Red light flash 10 times and stop working.
    Caution
    Keep the device away from any environment involving strong acids, alkaline, combustible materials, water, or any other liquids. Do not keep in hot cars or store above the room temperature of 74F. Do not use damaged batteries. If the battery casing is damaged, discontinue use and safely recycle the battery. Do not use the battery if contacts become exposed to solid or liquid matter. Shorts can result in fire or an explosion of a battery. Do not touch coils when hot. Severe burns can result in. Do not touch hot material. Severe burns can result in. If the device gets too hot in use, please stop using it for a while. Not for use with nicotine or other nicotine salt products. Not an ENDS device
    Disclaimers
    People under 21 years of age are not permitted to purchase or use this device. Non-smokers, children, and women breastfeeding should not use this product. The device is not a medical device and is not intended to diagnose, cure or prevent any diseases or other conditions. The manufacturers and sellers will not be responsible for any consequential or incidental damage resulting from the sale or use of any merchandise.
